SECTION 22.15 TRICASTER 460 CS
Normally, the 460 CS is used in a table-top configuration. Otherwise, a rabbet on all four sides permits you to embed the base in a cutout prepared for the purpose.
At the sides, a ½” (1.2 cm) ledge is formed for this purpose. The overlap provided front and back is narrower, about 5/16” (.31 cm).

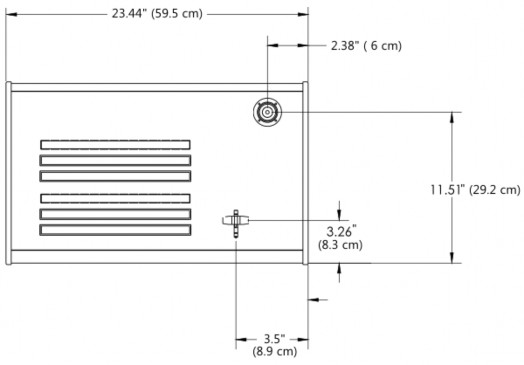

FIGURE 417
