SECTION 22.13 TRICASTER 8000 CS
Normally, the 8000 CS is used in a table-top configuration. Otherwise, the ½” (1.2 cm) rabbet provided at the front and back of the panel (only) permits you to embed the base in a cutout prepared for the purpose.

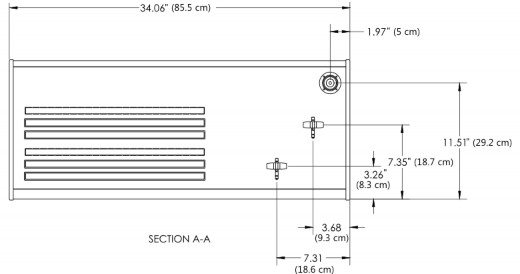

FIGURE 412
If you plan to mount the surface in the latter manner, take care that the thickness of the supporting material does not block access to the AC power connection and USB port at rear left on the control surface body.

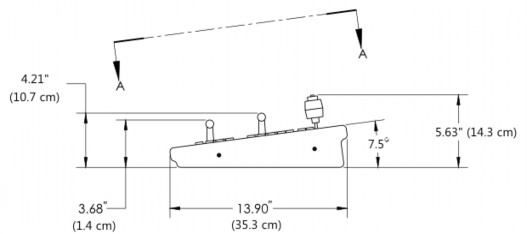

FIGURE 413
