SECTION 22.11 TRICASTER 460 AND 410

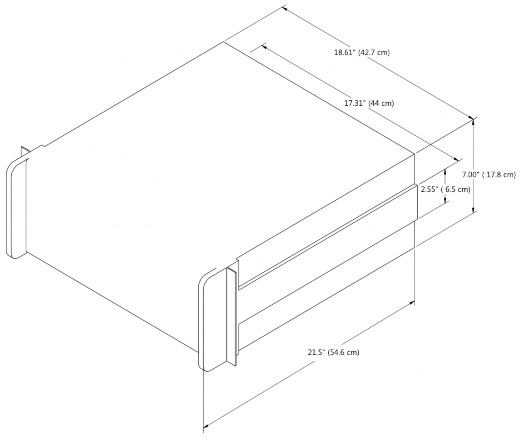

FIGURE 410

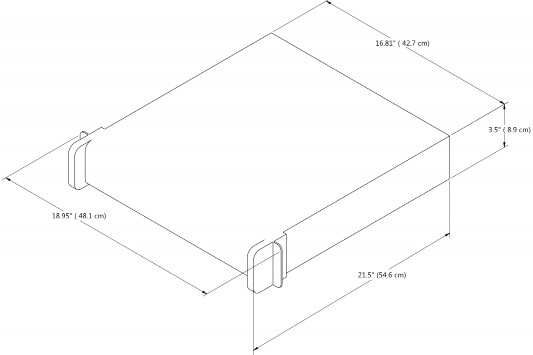

TriCaster 460 and 410 both ship in 2 Rack Unit (RU) enclosures supplied with ‘ears’ designed to permit mounting in standard 19” rack architecture.
The units weigh nearly 25 pounds (>11 KG). A shelf or rear support will distribute the load more evenly if rack-mounted. Good front and rear access is important for convenience in cabling, access to removable drive bays (TriCaster 460). In view of the top panel vents on 2RU models, at least one RU should be allowed above these systems for ventilation and cooling.
